H2 2-Pin Pluggable Wire Connectors

These H2 2-Pin Pluggable Wire Connectors are designed to provide a reliable, secure, and tool-friendly solution for joining low-voltage wires in a wide range of electrical and electronic projects. Each connector features a robust nylon-insulated housing paired with high-conductivity copper contacts, ensuring stable signal transmission and long-lasting mechanical performance.

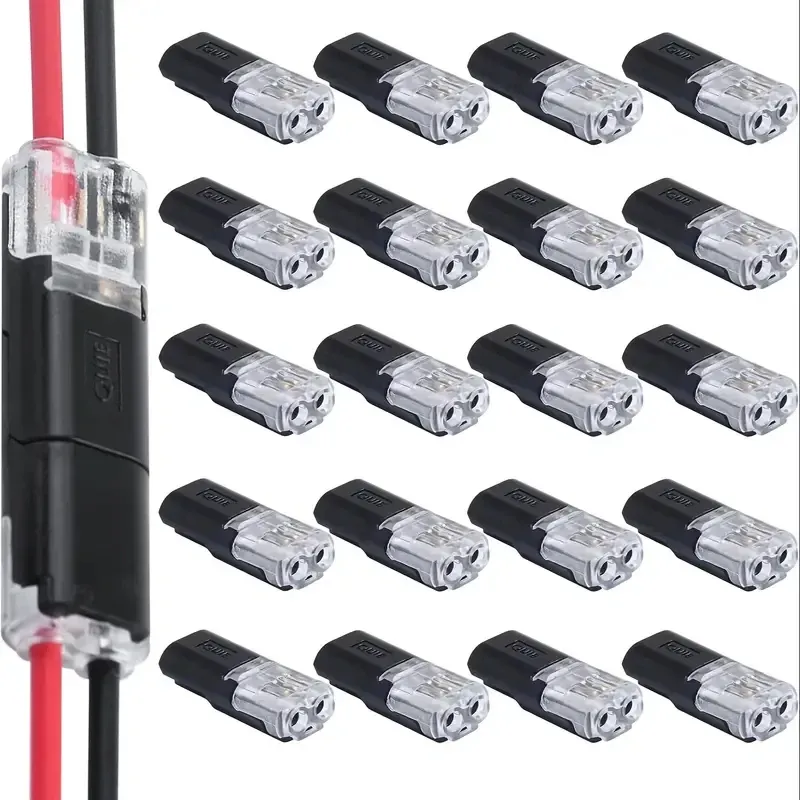

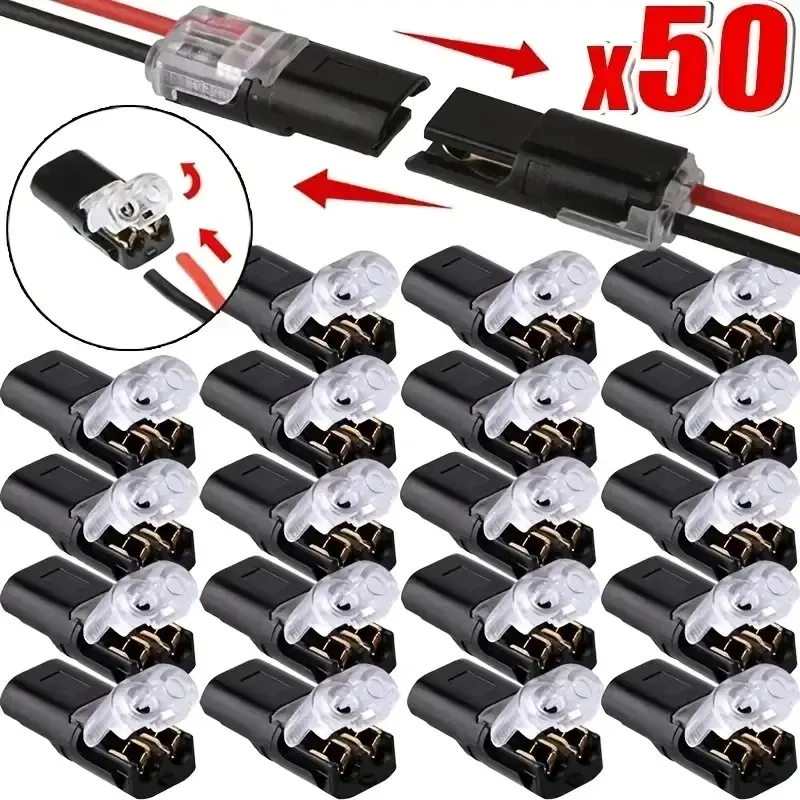

Offered in convenient pack sizes of 20, 50, or 100 pieces, these quick-connect terminal blocks are ideal for both small DIY jobs and larger professional installations. The 2-pin pluggable design allows users to easily connect and disconnect wires without soldering, crimping specialty tools, or applying heat — simply strip the wire, insert it into the terminal, and secure the screw clamp.

Key Features:

• Pluggable 2-Pin Design: The H2 connector format supports quick mating and unmating, making installation, testing, and maintenance faster and more efficient.
• Nylon Insulated Housing: Durable, flame-retardant nylon material provides excellent electrical insulation, heat resistance, and protection against accidental short circuits.
• Copper Quick-Connect Terminals: High-purity copper contacts deliver low resistance and superior conductivity for dependable low-voltage performance.
• No Power Mode Required: These are purely mechanical connectors — they contain no electronic components, no polarity-sensitive circuitry, and no active power elements.
• Screw-Clamp Termination: Each pole uses a secure screw clamp that holds stranded or solid copper wire firmly in place for vibration-resistant connections.
• Compact and Lightweight: The small footprint makes these terminal blocks suitable for tight enclosures, control panels, and junction boxes.

Typical Applications:

• LED strip lighting and low-voltage lighting projects
• DIY electronics, Arduino, and Raspberry Pi wiring
• Security systems, CCTV, and alarm installations
• Speaker wire and audio equipment connections
• Model trains, robotics, and hobby electronics
• Automotive low-voltage repairs and accessories
• Home automation and smart switch wiring
• Power supply and adapter cable extensions

Technical Specifications:

• Connector Type: H2 2-Pin Pluggable Terminal Block
• Number of Poles: 2
• Housing Material: Nylon (PA66), flame-retardant
• Contact Material: Copper alloy

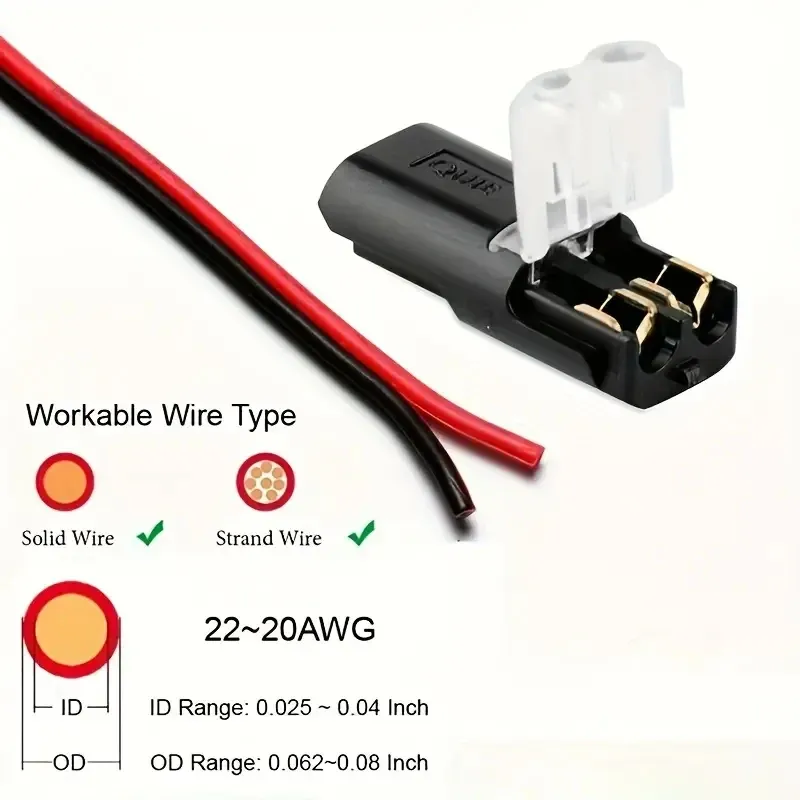

• Wire Gauge Compatibility: Typically 22–14 AWG
• Rated Voltage: Suitable for low-voltage DC applications (commonly up to 300V)
• Rated Current: Commonly up to 10A depending on wire gauge and conditions
• Mounting Style: Free-hanging or panel-mount compatible

Why Choose These Connectors?

Unlike soldered joints or proprietary plug systems, these quick-connect terminal blocks offer a reusable, serviceable, and beginner-friendly wiring solution. Because they contain no electronic components, they can be safely used in passive wiring scenarios where only a clean, mechanical connection is required. This makes them an excellent choice for prototyping, field repairs, and permanent installations alike.

The nylon insulation adds an extra layer of safety, reducing the risk of arcing, contact corrosion, and accidental shorts. Combined with copper terminals, the result is a connector that balances mechanical strength, electrical performance, and ease of use at an affordable price point.

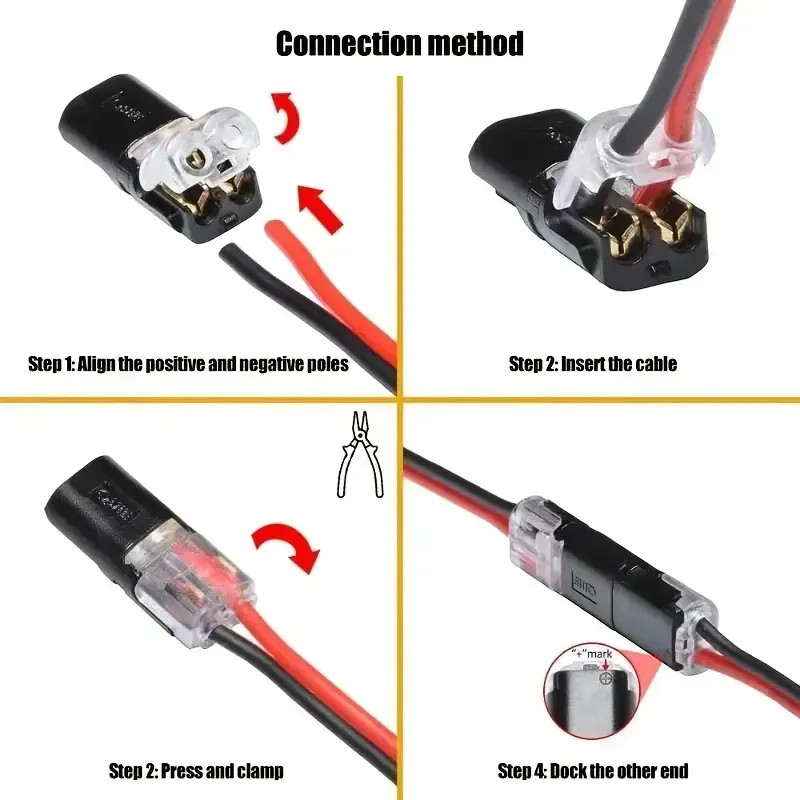

Installation Tips:

• Always disconnect power before wiring, even though these connectors are passive.
• Strip wire to the recommended length (usually 5–7 mm) before insertion.
• Tighten the screw clamp firmly but avoid over-torquing, which can damage the copper contact.
• Use wires of compatible gauge to ensure a secure, low-resistance connection.
• For outdoor or damp environments, place the connection inside a sealed enclosure.

Whether you are a professional electrician, an electronics hobbyist, or a homeowner working on a weekend project, this multi-pack of H2 2-Pin Pluggable Wire Connectors delivers the versatility, reliability, and value you need. Stock up with the 100-pack option for big jobs, or choose the 20-pack for quick repairs and small builds.

Note: This product is offered for sale by third-party partners and is not a proprietary branded item. Specifications may vary slightly by supplier; please refer to the seller's listing for exact ratings and dimensions.
